Horizontal Glass Washing and Drying Machine

Short Description:

High-quality horizontal glass washing machine from 800mm-2000mm are available through Leader Glass Machinery. Select from either 6 or 8 brush configurations and add low-e brushes, if needed, to customize your glass cleaning machine.

Designed to wash and dry flat low-E glass and float glass, our glass washing and drying machines ensure an efficient and flawless wash every time.

Max Glass Size: 1600mm

Min Glass Size: 200x200mm

Glass Thickness: 3-18mm

Dimensions: 4000x2000x1100mm

Weight: 1000kg

Applicable: Ordinary flat glass, float glass, low-e glass, etc.

Send email to us

Product Detail

Product Tags

Product Description

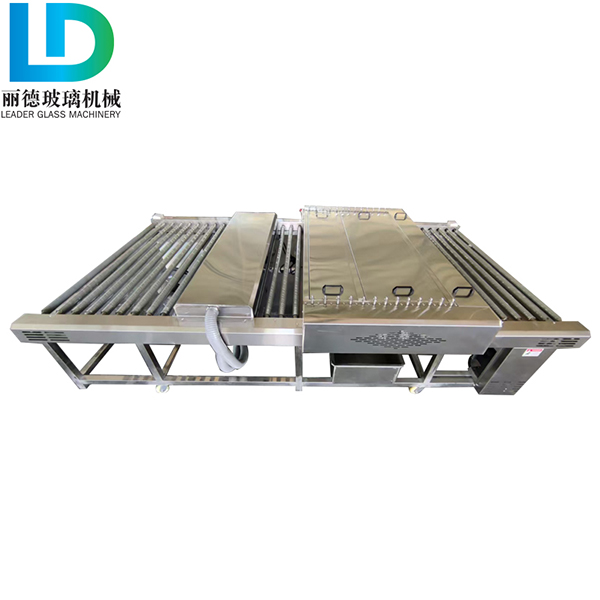

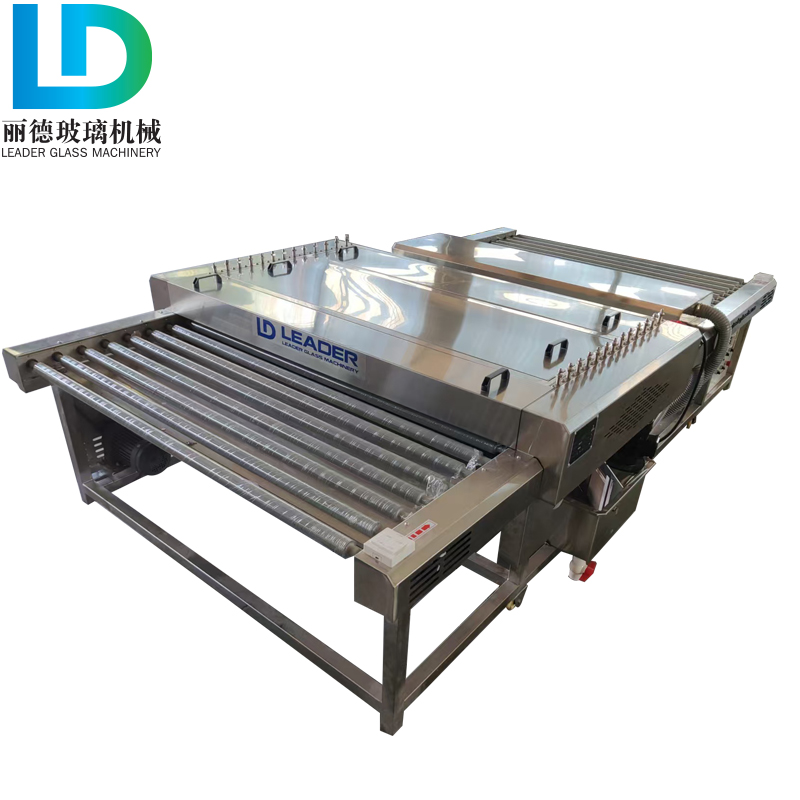

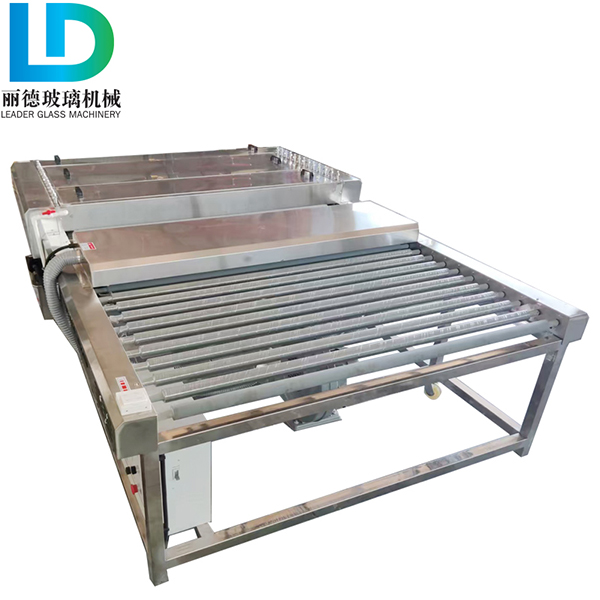

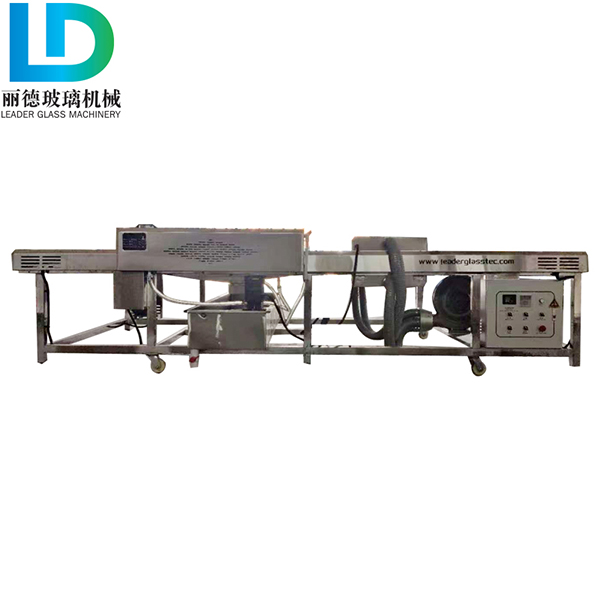

The LD-1600 horizontal glass washing machine features a horizontal structure and consists primarily of a feed section, washing section, drying section, discharge section, a fan, and an electrical control box. It offers easy operation, excellent cleaning results, and reliable performance, effectively removing dirt, dust, and fine particles from glass surfaces. Constructed entirely of stainless steel, it is rust-resistant, easy to clean, and convenient to maintain.

The LD-1600 horizontal glass washing machine is suitable for a variety of glass processing processes, including insulating glass and tempered glass. It can clean ordinary flat glass, float glass, and coated glass, making it an excellent choice for various glass manufacturers.

Note:Glass machine specifications can be customized according to customer needs

Technical Parameters

Product name	Horizontal Glass Washing and Drying Machine
Model	LD-1200	LD-1600
Max Glass Size	1200mm	1600mm
Min Glass Size	150x150mm	200x200mm
Glass Thickness	3-18mm	3-18mm
Washing Speed	1000-5000mm/min	1000-5000mm/min
Power	9kw	11kw
Voltage	3P 380V 50HZ
Dimensions	3600x1600x1050mm	4000x2000x1100mm
Weight	800kg	1000kg
Applicable	Ordinary flat glass, float glass, low-e glass, etc.
